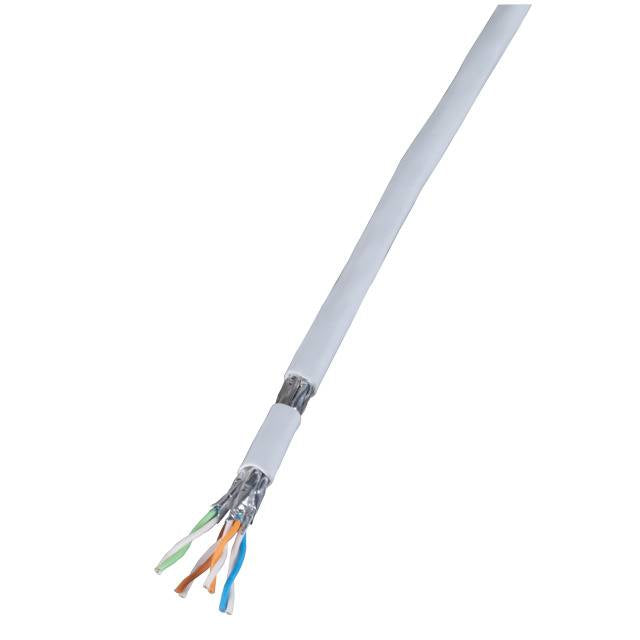

Draka Cat.7 UC900 1000 MHz PIMF S/FTP 100M Grijs 100% koper
Draka Cat.7 UC900 1000 MHz PIMF S/FTP 100M Grijs 100% koper
Regular price
€150,33 EUR
Regular price
Sale price
€150,33 EUR
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Draka S/FTP dubbel afgeschermde kabel soepel 100% koper 100 meter
S/FTP CAT 7
AWG 26/7
kleur grijs 100M
4 x 2 AWG 26/7
Halogeenvrij
1000MHz
100% koper
Cat.7 Patch cord - overtakes the requirements of ISO/IEC 11801, IEC 61156-6, EN 50173-
1 and EN 50288-4-2
Useable for all ICT - applications up to class F according to EN 50173-1 and ISO/IEC 11801, furthermore also for multimedia - applications in CATV - frequency range up to 862 MHz according to IEC 15018
Suitable for performance of Power over Ethernet (PoE) / PoE+
| Category: | 7 |
|---|---|
| Conductor category: | Kl.1 = single wire |
| AWG-size: | 26 |
| Conductor material: | CU, tinned |
| Screen over stranding: | braiding |
| Stranding element: | pairs |
| Screen over stranding element: | foil |
| Number of cores: | 8 |
| Core insulation: | foam-skin PE |
| Core identification: | colour |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, fix: | -20 – 60 °C |
| NVP value: | 79 % |
| Material outer sheath: | FRNC-B |
| Flame retardant: | according to EN 60332-1-2 |
| Halogen free (acc. EN 50267-2-2): | True |
| Low smoke (acc. EN 61034-2): | True |
