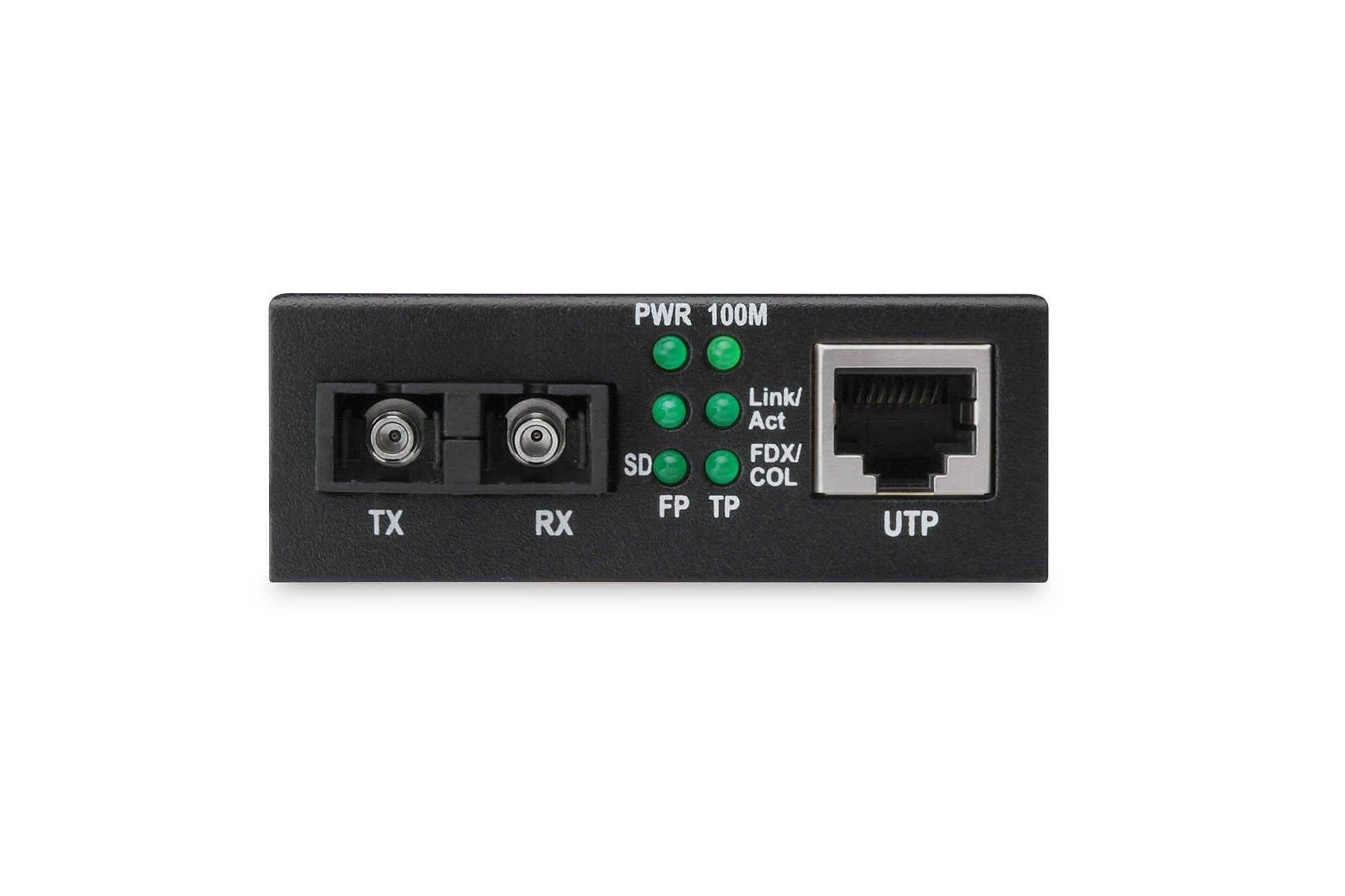

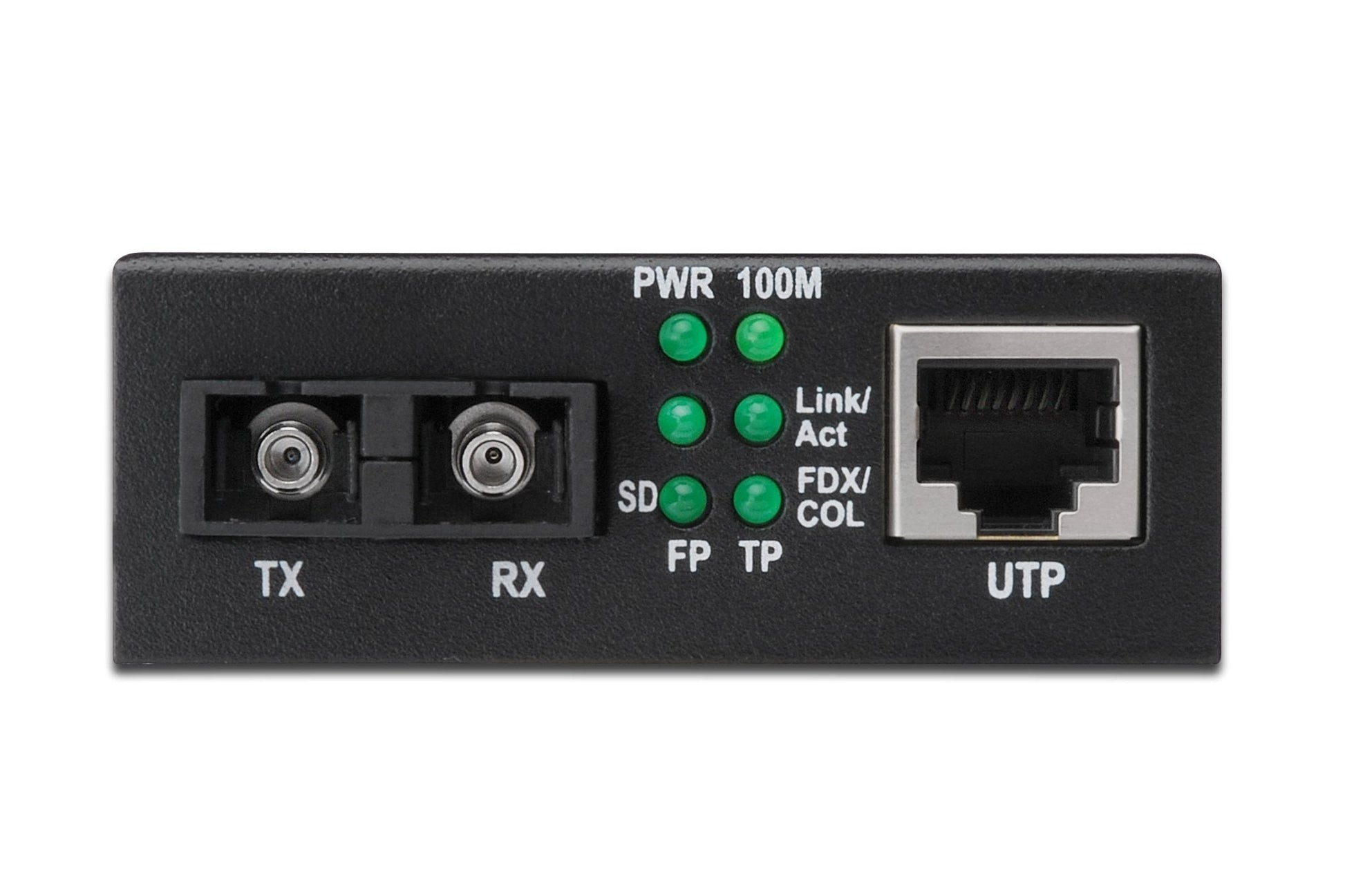

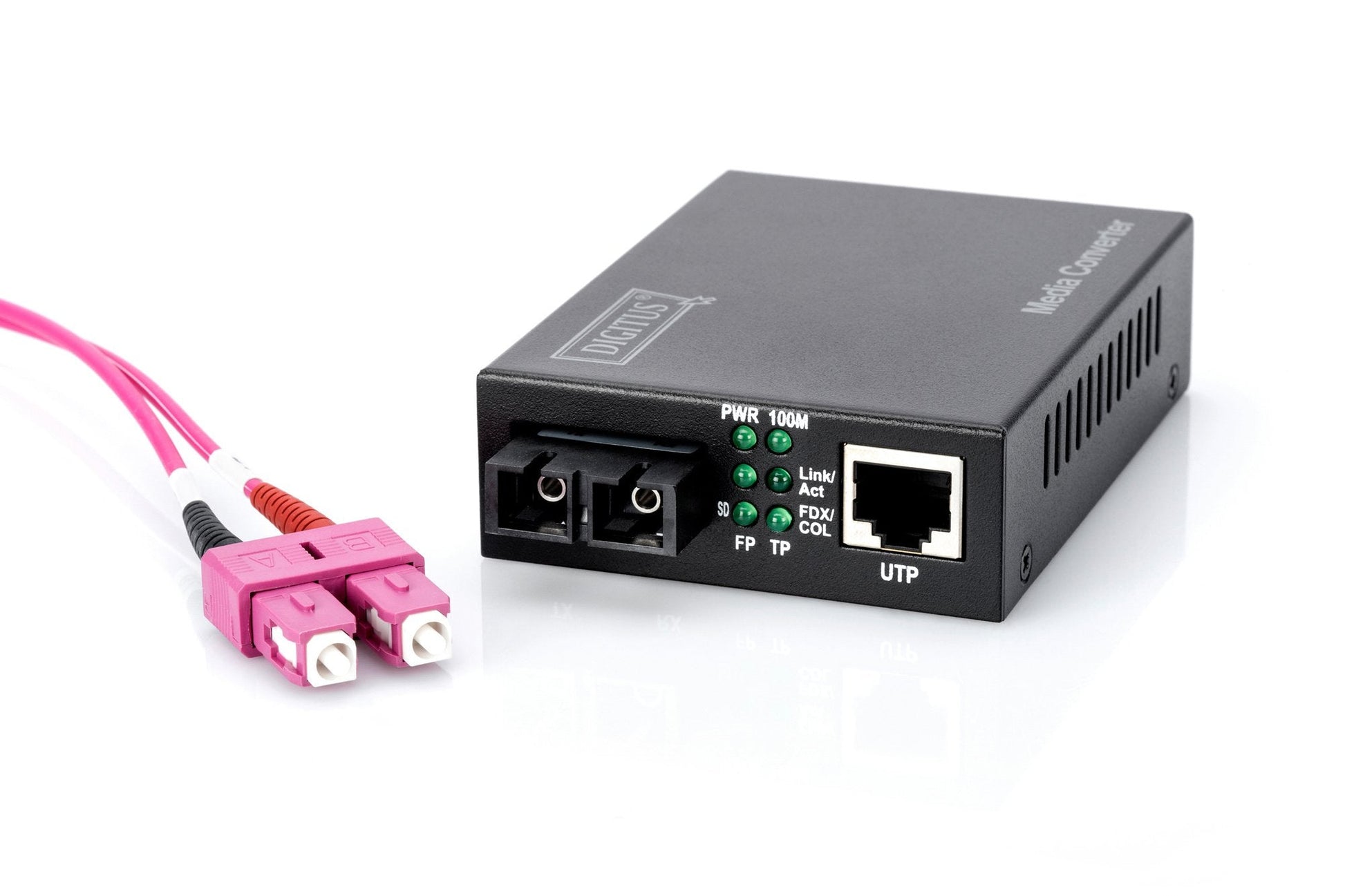

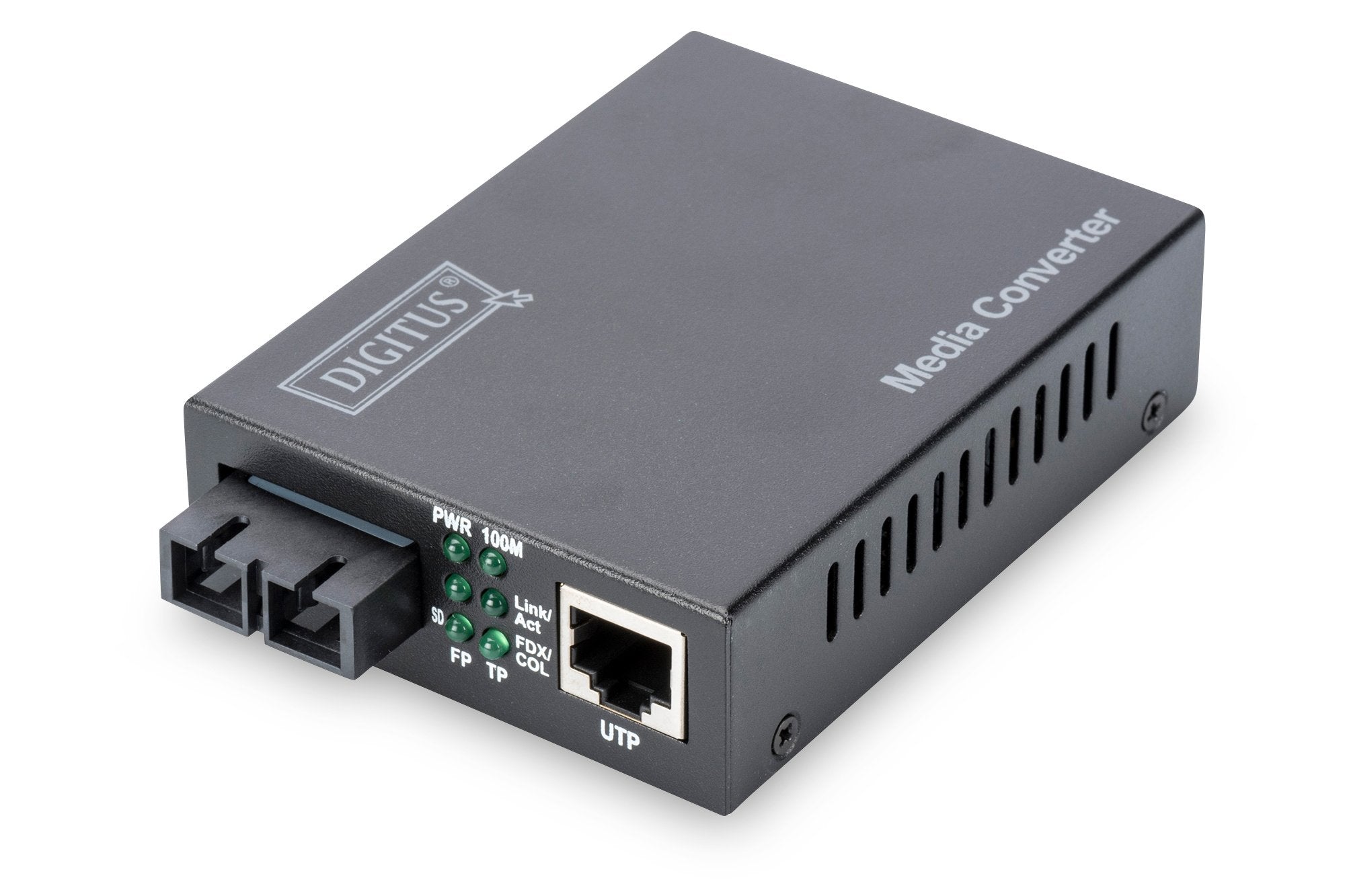

Fast Ethernet Mediaconverter, RJ45 / SC

Name: Fast Ethernet Mediaconverter, RJ45 / SC
Brand: Digitus
SKU: DN-82020-1
Price: 31.30 EUR
Availability: InStock

De Media Converters zijn de ideale oplossing voor de migratie van koper- en glasvezelnetwerksignalen.

€31,30

Aanbieding Uitverkocht

Op voorraad

Aantal

We staan klaar om je vragen te beantwoorden en je bij elke stap te begeleiden.

Aantal

Product beschrijving

Fast Ethernet-mediaconverter, multimode SC-schakelaar, 1310nm, tot 2km

De perfecte converteroplossing voor optische gegevensoverdracht

Transforms wire based network media to fiber optic
High quality and excellent reliability
10/100Base-TX to 100Base-FX
Connectors: 1x RJ45, 1x SC duplex
Distance: up to 2km
Wavelength: 1310nm
Multimode dual fiber
Automatic cable detection - auto MDI / MDI-X function
Auto-negotiation of full- and half-duplex
Diagnostic and monitoring LEDs for the status of power, link and act of the ports
Link Fault Pass Through (LFP) function for easier network maintenance
Suitable for 50/125µm and 62.5/125µm Fiber Cables
Transmission power: minimum -22 dBm, maximum -12 dBm
Sensitivity receiving power: minimum -30 dBm
Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet
128kB data buffer
Operating temperature: 0 to 55°C
Dimensions (L x W x H): 95mm x 70mm x 26mm
Weight: 200g
Standalone Converter with external power supply
Input Supply Voltage: 5V DC
Max. Current: 800mA
Power Consumption: 2.5W
Connector 1: RJ45
Connector 2: SC
Mode: Multimode
Distance (km): 2
Industrial usage: no
Broadcasting Mode: Unidirectional
PoE injector: no
Ethernet speed: Fast Ethernet
